| IDF-11-32 | IDF-11-34 | |
|---|---|---|
| Thermostat Control: | Mechanical-Low/High | Mechanical-Low/High |
| Btu/Hr: | 2,400,000 | 2,400,000 |
| Maximum Btu/hr: | 2,400,000 | 2,400,000 |
| Minimun Btu/Hr: | 1,200,000 | 1,200,000 |
| CFM: | 11,000 | 11,000 |
| Max. External Static Pressure: | Up to 3″ ESP | Up to 3″ ESP |
| Fan Type: | Backward Inclined | Backward Inclined |
| Discharge Diameter: | 24″ | 24″ |
| Voltage: | 3 Phase, 208 Volt | 3 Phase, 480 Volt |
| Current Consumption: | 44 amps | 22 amps |
| Recommended Fuse Size: | 100 amps | 50 amps |
| Fuel Type: | #1-#2 Diesel, NG or Vapor Propane | #1-#2 Diesel, NG or Vapor Propane |
| Natural Gas Consumption: | 1,200 CFH Lo-Fire – 2,400 CFH Hi-Fire | 1,200 CFH Lo-Fire – 2,400 CFH Hi-Fire |
| Propane Consumption: | 13.1 GPH Lo-Fire/ 26.2 GPH Hi-Fire | 13.1 GPH Lo-Fire/ 26.2 GPH Hi-Fire |
| Diesel Consumption: | 8.6 GPH Lo-Fire/ 17.3 GPH Hi-Fire | 8.6 GPH Lo-Fire/ 17.3 GPH Hi-Fire |
| Pressure Range: | 2 psi / 25psi | 2 – 25 psi. |
| Temperature Control Discharge: | Yes | Yes |
| Air Proving Safety: | Yes | Yes |
| Flame Sensing Safety: | Yes | Yes |
| Net Weight: | 9400 lbs. | 9400 lbs. |
| Data Sheet: | IDF-11-32 | IDF-11-34 |
| NEMA Plug Configuration: | N/A | N/A |
| High Limit Discharge: | Yes | Yes |
| Dimensions: | 95″ x 192″ x 96″ (without stack) | 95″ x 192″ x 96″ (without stack) |

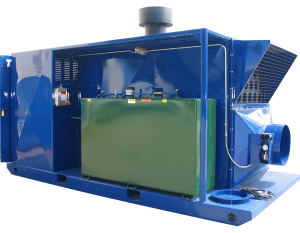

IDF-11
Model: IDF-11
Voltages: 3 Phase 208 or 480 Volt
BTU/HR: 2400000 Btu/Hr
CFM: 11000
Fuel Type: NG or Vapor Propane
Dimensions: 96" x 192" x 96" w/o stack
