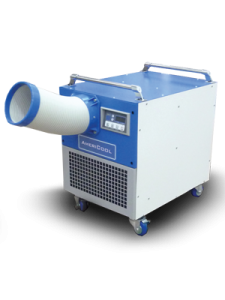

Modular Cooling Air Conditioner

WMC-2500 Key Features:

• SWITCH BETWEEN 4 INSTALLATIONS
  • HANGING AIR CONDITIONER
  • PORTABLE AIR CONDITIONER
  • RACK MOUNTABLE AIR CONDITIONER
  • STACKED AIR CONDITIONER
• 10,000 Btu/h
• 115V, SINGLE PHASE
• OPERATING RANGE OF 64-113 DEGREES
• SPOT & ROOM COOLING SETTINGS
• IDEAL FOR SERVER ROOMS
• 17.25" x 24" x 20"

Included Parts:

• CONDENSATE PUMP
• WASHABLE VINYL CHLORIDE FILTERS
• 20' OF 1/2" DIAMETER CONDENSATE TUBING

Suggested List Price: $3095

Financing Available!

Where to Buy: Units are sold exclusively through our network of distributors.

Call us today for your local distributor: 888-726-6158

Product Catalog

Spec. Sheet

View Manual

• Product Specifications

  SPECIFICATIONS	UNIT
  Cooling Capacity	Btu	10,000
  Power Supply	Phase	Single
  	Volts	115
  	Hertz	60
  Size (W x D x H)	Inches	17.25 x 24 x 20
  Weight	Lbs	110
  Current Consumption	Amps	10
  Circuit Breaker Size	Amps	15
  Power Consumption	kW	1.1
  Air Flow (High/Low) Evaporator	CFM	320 / 20
  Air Flow Condenser	CFM	500
  Motor Input (High/Low) Evaporator	kW	0.093
  Motor Input Condenser	kW	0.18
  Nema Plug	Type	5-15P
  Power Cord Guage	Awg	14AWG
  Power Cord Length	ft	10
  Refrigerant	Type	R410A
  	oz	15.8
  Operating Conditions	°F	64~113
  Hot Air Duct Diameter	Inches	6
  Maximum Hot Exhaust Duct Length	ft	25
  Maximum Cold Duct Length	ft	10
  Condensate Tank	Gal	Auto Pump Included

• Optional Accessories



  WPCHANG01

  Hanging Installation Kit



  WPCPORT01

  Portable Installation Kit



  WPCRACK01

  Rack Installation Kit



  WPCSTACK01

  Stacking Installation Kit
